JR EDM piercing machine performance characteristics
Features 1: Z axis maximum stroke 380mm, can be clamped 500mm electrode, and the electrode tube waste minimized, greatly improving the efficiency of the use of the electrode.
Feature 2: Z-axis head movements using electric lift.
Feature 3: Patented rotating head: tungsten steel wear-resistant film, the first motor rotating head integrated design.
Technical parameter table of machine tool
|
Model |
JR-340 |
|
Range of clamp electrode（mm） |
Φ0.3-Φ3.0 |
|
Work head travel |
280 |
|
Spindle servo stroke (mm) Z axis |
380 |
|
Two stroke of spindle（mm） |
/ |
|
Maximum adjustment speed of spindle（mm/min） |
800 |
|
Rotating head (C axis) speed（rpm） |
0-500 Adjustable |
|
Workbench size（mm） |
440*320 |
|
X*Y *Z *UTrip（mm） |
400*300*380*280mm |
|
Maximum distance between guide and worktable（mm） |
320 |
|
Maximum machining current（A） |
40A |
|
Maximum input power（KW） |
4.5 |
|
Power input mode（V/HZ） |
380/50 |
|
Digital display |
2 axis |
|
Maximum working fluid pressure（Mpa） |
8 |
|
Maximum work load（Kg） |
300 |
|
Mainframe size（W*L*H） |
1000*1000*1900 |
|
Weight（kg） |
800 |
Main configuration of fine hole discharge machine
|
Model |
JR-340 |
|
The bed |
Small rack bed (with a tool box) |
|
Workbench |
High precision leveling marble |
|
operating system1 |
Manual adjustment of processing parameters |
|
operating system2 |
Automatic rise of rotating head |
|

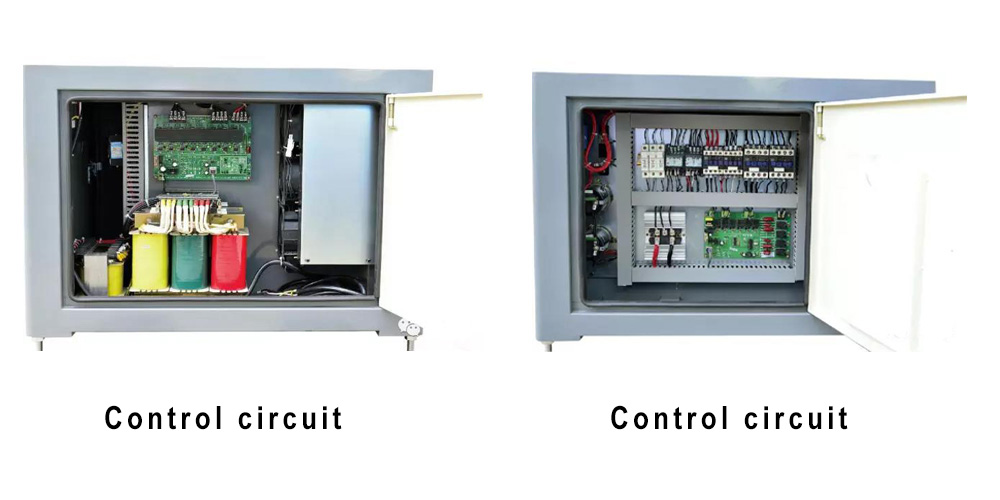

High frequency system1 |
Taiwan flexible discharge system |
|
X/Y/Z wire rod |
Threaded rod |
|
Z axis guide |
Linear guide rail |
|

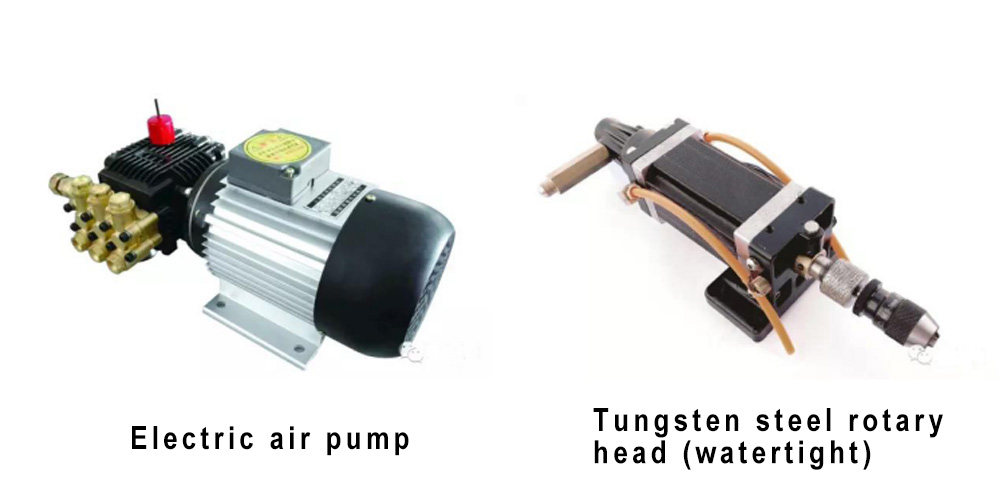

Rotating head |
One type of tungsten carbide rotary head (patent product) |
|
Electric machinery |
Stepping |
|
pumping |
Electric high pressure pump |
|
handwheel |
Fold |
|
Working lamp |
Bend LED |
|
water tank |
Floating independent water tank |
|
Chuck |
Taiwan wrench chuck |
Thin hole discharge machine accessories list
|
Model |
JR-340 |
|
The mainframe of the perforator |
1 |
|
Six angle wrench |
1 |
|
Double head screwdriver |
1 |
|
Special scissors for electrode |
1 |
|
water tank 20L |
1 |
|
bucket 10L |
1 |
|
Water dispenser |
1 |
|
Water retaining plate |
1 |
|
Silica gel stopper |
20 |
|
Machine tool ground M16 |
4 |
|
Taiwan three Heron precision wrench chuck |
1 |
|
Electrode copper tube 0.5mm |
100 |
|
Electrode copper tube 1.0mm |
100 |
|
Y1242 Guide device 0.5mm |
1 |
|
Y1242 Guide device 1.0mm |
1 |
|
Instructions |
1 |
