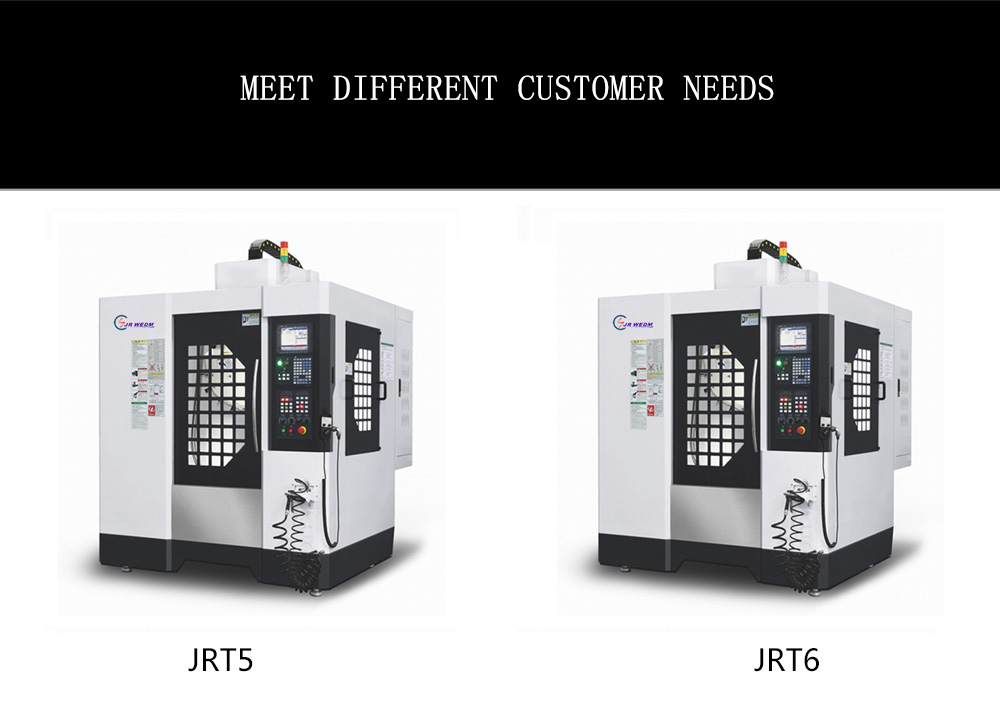

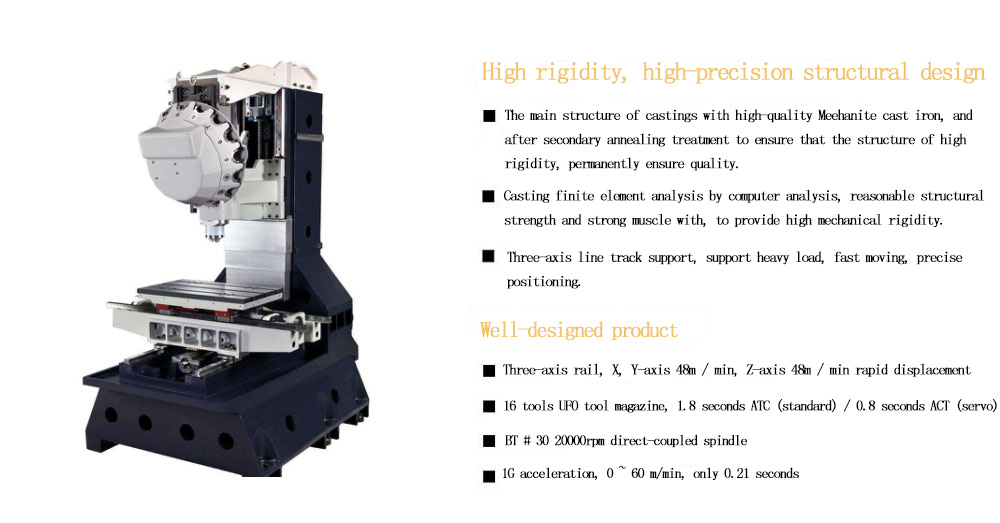

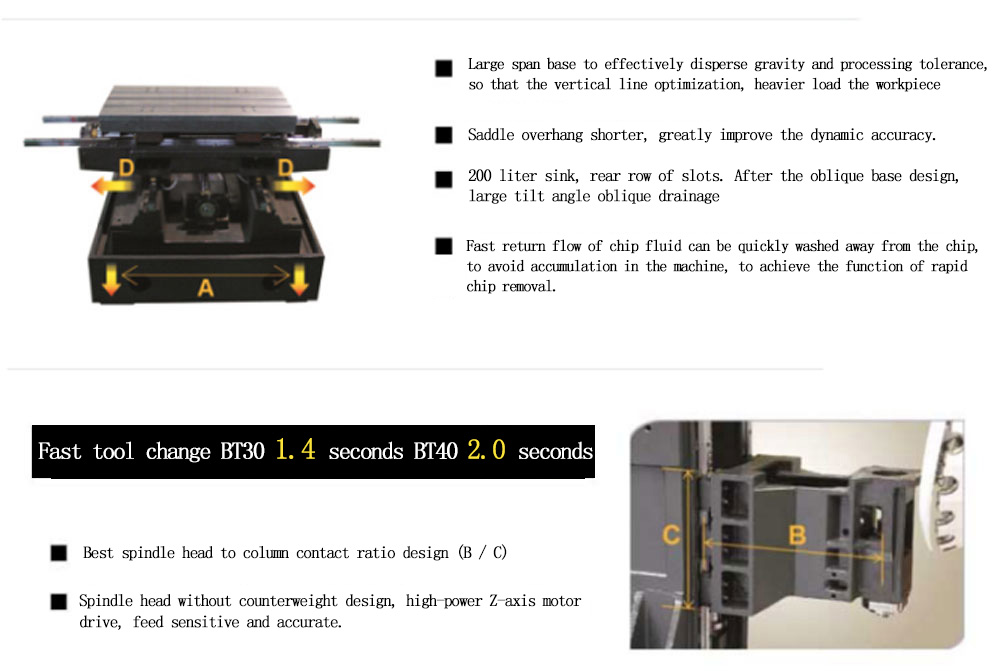

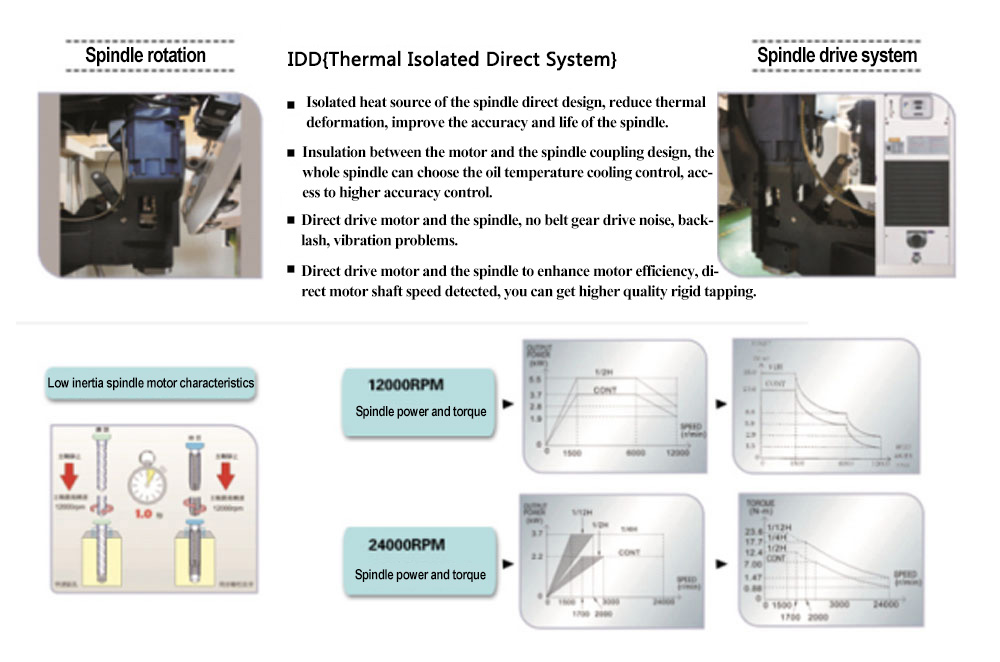

technical parameter | unit | JRT5 | JRT6 |
Workbench size | mm | 650X400 | 720X420 |
T slot size (quantity X width X pitch) | mm | 3X14X125 | 3X14X125 |
Maximum load of worktable | kg | 250 | 300 |
Guideway type | Three line rail | Three line rail | |
X/Y/Z axis stroke | mm | 500/400/300 | 600/400/300 |
The distance between the nose end of the spindle and the working table | mm | 150-450 | 150-450 |
Spindle center to column | mm | 420 | 500 |
Spindle taper | BT30 | BT30 | |
Spindle speed | rpm | 100-20000 | 100-20000 |
Transmission mode | Direct | Direct | |
Spindle motor | kw | 3.0 | 3.0 |
X/Y/Z shaft motor | N.m | 8/8/12 | 12/12/12 |
Spindle cooling | Optional | Optional | |
Fast feed speed of X/Y/Z axis | M/min | 48 | 48 |
Fast feed speed of X/Y/Z axis | M/min | 10 | 10 |

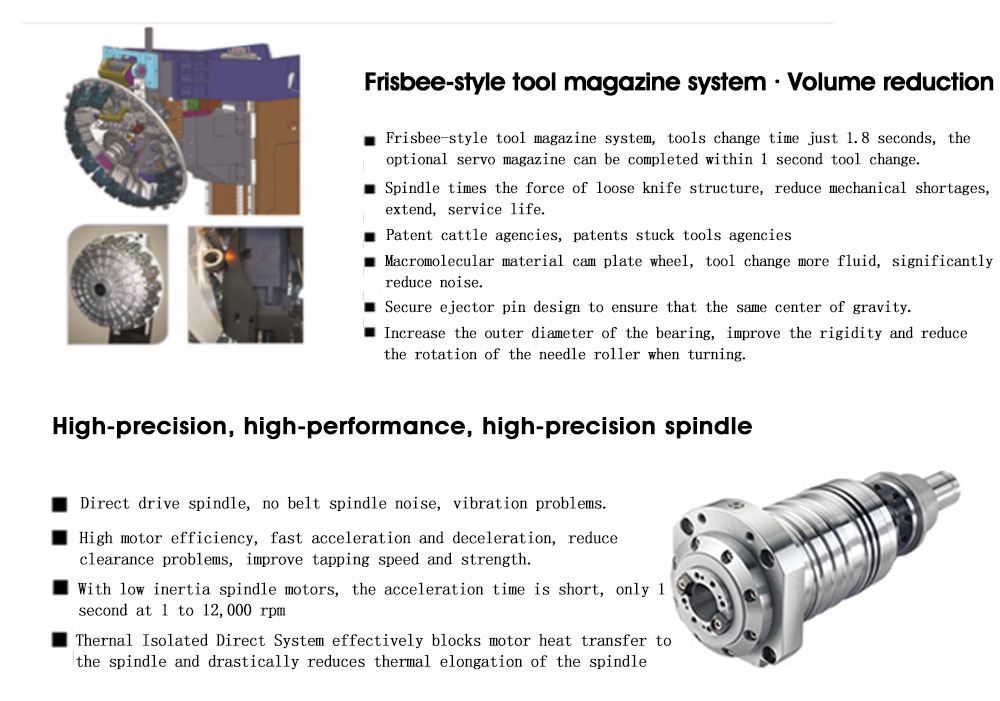

Tool library form | Clip arm knife library | Clip arm knife library | |
Knife storage capacity&Handle form | BT30-16T | BT30-16T | |
Maximum tool length | mm | 200 | 200 |
Maximum tool weight | kg | 4 | 4 |
Changing time | sec | 3 | 3 |
Power demand specification | KVA | 15 | 20 |
Required pressure | kgf/c㎡ | 5-7 | 5-7 |
positioning accuracy | mm | ±0.01 | ±0.01 |
Repeatable positioning accuracy | mm | ±0.005 | ±0.005 |
Machine tool shape size (long X width X high) | mm | 1760×2250×2200 | 1800×2300×2200 |
Weight of machine tools (net weight / gross weight) | T | 3.1 | 3.3 |
Standard configuration: | Selection configuration: |
FANUC Type T worktable Rigid tapping Clip arm knife library Handheld pulse generator (handwheel) Full cover protection Cooling system, cutting water tan k All protective cover for guide rail Working lamp, mechanical abnormal state warning lamp Toolboxes and special tools Adjust the pad and bolt Main shaft blowing device Electric box heat exchanger Automatic lubrication system 380V/220V 50HZTransformer |
MITSUBISHI M70 system control system Taiwan new generation control system SIEMENS 828D control system Spindle speed15000rpm Automatic power outage device Fourth axis Main shaft oil cooling Main shaft center effluent system Automatic iron scraper conveyor Tool detection device |
